150 OG SPOUTING

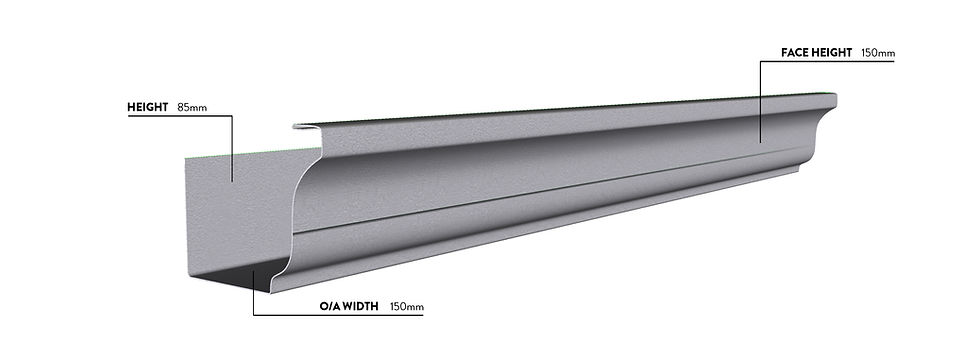

Steelform 150 ‘Old Gothic’ spouting has a traditional look about it, with a convex and concave face reminiscent of that used on Colonial style homes. This profile features the same aesthetic lines as our 125 Old Gothic Spouting, but in a larger size to suit homes with a larger roof area.
SPECIFICATIONS
SCOPE OF USE
Suitable for residential applications
AVAILABLE IN
0.55mm BMT Zincalume®, Colorsteel Maxx® and Copper (price on application, please enquire)
LENGTHS
Lengths are custom run to order in our New Plymouth factory (maximum 8m lengths), or run on-site Taranaki and Wanganui wide
ACCESSORIES
BRACKETS
Steelformers Old Gothic spouting can be fixed with internal or external aluminium brackets that are powdercoated to match the spouting. The brackets should be fixed at a maximum of 750mm centres. In areas where snow fall is possible and/or high wind areas the centres should be reduced to 600mm maximum. All installations as per NZMRM Code of Practice recommendations.
FIXINGS
Screw fastenings are to be compatible with substrate and bracket material avoiding dissimilar material contact
CORNERS & STOPENDS
All corners and stopends are formed on site at the time of installation, please allow enough material to do so. Steelformers recommends adding 400mm to your required lengths.
DOWNPIPES & ACCESSORIES
Various round downpipes and accessories can be ordered in from our suppliers. For more information on whats available contact your nearest Steelformers branch.
